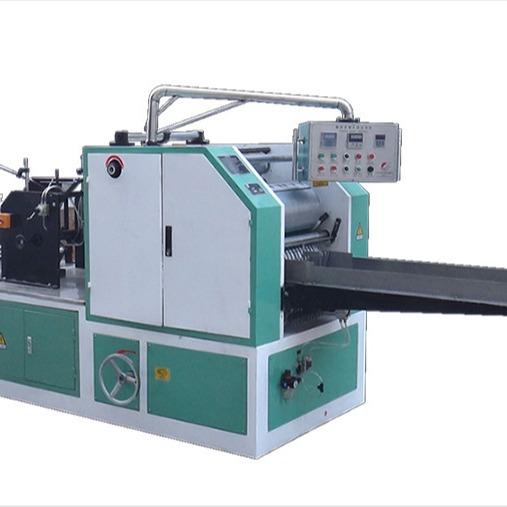

Automatic Counting Embossed Napkin Paper Napkin Machine Tall and Low Fold
Description
Tall and low fold paper napkin machine is developed to produce tall and low fold embossed napkin tissue. It can work together with automatic napkin packing machine.
The equipment adopts frequency control, which makes the machine more speed and stable. It will save labor, increase production efficiency and make your finished products more customer-friendly.
Compact design and easy adjustment help operators to have full control of functionality and production of the machine.
Technical Specification
| YY-VI Tall and Low Fold Napkin Machine |
| Folded size | 102x200mm±3mm |
| Open size | 400x400±3mm |
| Parent roll size | 800×Ф1200mm(13-16gsm double ply wood pulp tissue paper) |
| Emboss unit | One set of steel to wool emboss, buyer and seller confirm the emboss design |
| Unwinding | Pneumatic paper roll loading. Flat belt feeding, |
| Folding | Longitudinal center fold, by formation plate |
| Slitting unit | One set |
| Counting | Pneumatic |
| Transmission | Mainly belts and chains |
| Alarm | Automatic machine stop while paper breaking |
| Speed | 700-800sheets/min( two lines output) |
| Power needed | Main motor 5.5KW, Blower 11-15KW |
Our Production Process and Delivery to Customer
We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer for confirmation and approval before packaging and shipment.
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your napkin machines running.
- 24/7 breakdown support
- 2,600+ part numbers stocked in our warehouse
- Immediate response for non-stock parts requests
- Professional team members dedicated to supporting your spare parts needs
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Staff training
